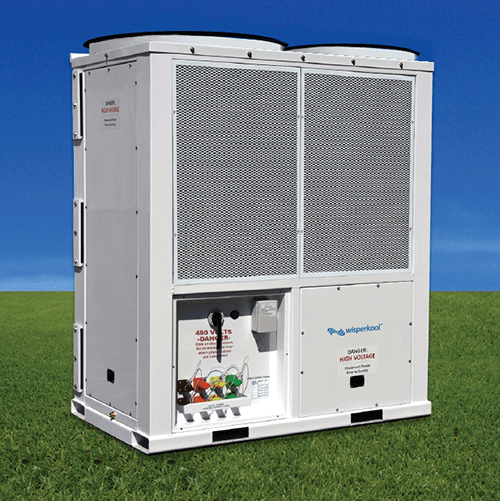

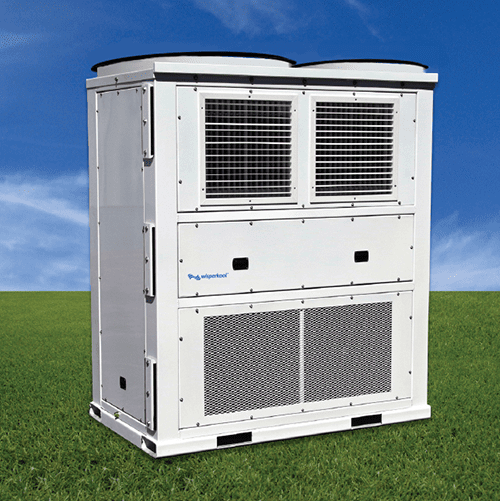

15 Ton HVAC

Product Brochure

Physical Data

  • Weight: 1,827 lb
  • Depth: 40"
  • Length: 66"
  • Height: 79"
  • Fork Pockets: 4" x 8"

Electrical Features

  • Single Speed Blower Motor
  • "Daisy Chain" Cam-Lock Connections
  • Individual Breakers on All Loads
  • 15 KVA Transformer (Available as an option)
  • 120 Volt Convenience Outlet (Available as an option)

Telemetric Controls

  • Optimal

Blower Data

  • Single Speed
  • Single Speed CFM: 5,000
  • Motor: 5 HP

Electrical Data

  • 480 volt/60 Hertz 3 phase
  • MOP 61 Amps

Heating Coil Data

  • High capacity coil style

Refrigeration Features

  • Refrigerant 410A
  • Suction Valves
  • Hot Gas By-Pass Valve

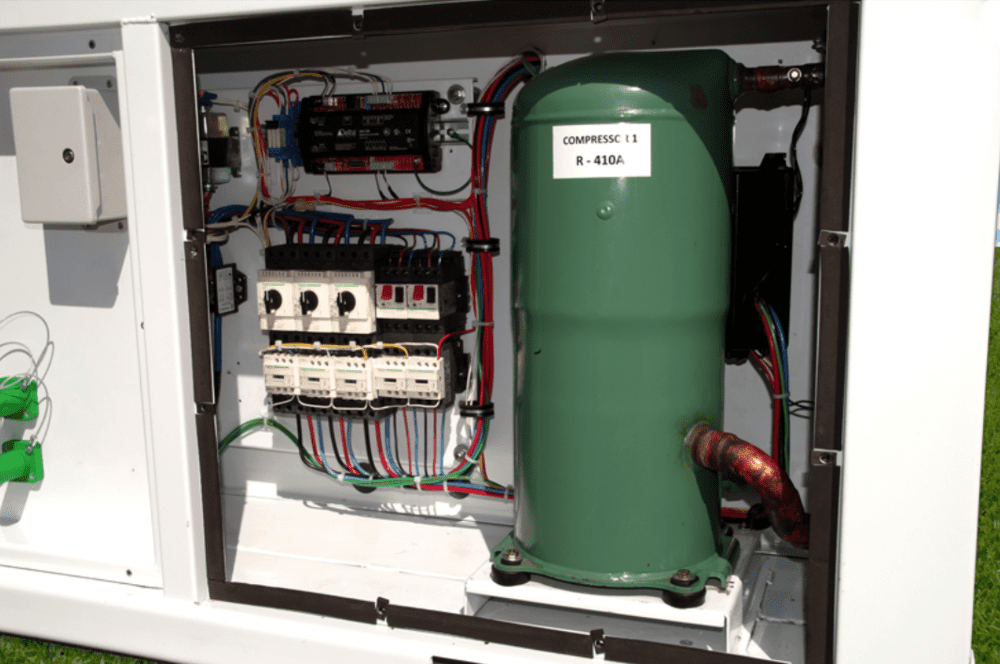

Compressor Data

  • Blitzer 15 ton scroll compressor

Heating and Cooling Data

  • Heating capacity 35 kW
  • Cooling capacity 195,445 BTUs

Cabinet Features

  • Heavy Duty Welded Steel Construction
  • Bolt on Panel Design with Handle
  • Exterior Panels and Frame Powder-Coated
  • Side and Top Tent Clamp Tethers
  • Stainless Steel Hardware
  • Duct Adapters (optional)
  • Condensate Pump (Optional)
